Ground Screw is the foundation of solar bracket for solar power plants. It is used to drive into the ground and connect to the bracket above, supporting the whole system. It is a very important part of the solar system.
Item No :
SR DZ 01Payment :
30% T/T as deposit,70% before shipment.Product Origin :
Xiamen, ChinaColor :
SilverShipping Port :
XiamenLead Time :
7-15 days|
Brand： |
SR SOLAR |
|
Place of Origin： |
Xiamen, China |
|
Material： |
Q235B |
|
Treatment： |
Hot-dip Galvanization |
|
Diameter: |
76mm/OEM |
|
Length： |
L1200mm~L4000mm |
|
Flange size: |
200mm/220mm/OEM |
|
Thickness: |
3.0mm/3.25mm/3.5mm/OEM |
|
Warranty: |
10 years |
|
Certificate: |
ISO9001/SGS |
Product Description:
The surface treatment of ground screw is hot-dip galvanization and the thickness of zinc layer of the tube can reach 80 microns or more while the thickness of zinc layer of the flange can reach 110 or more.
 |
 |

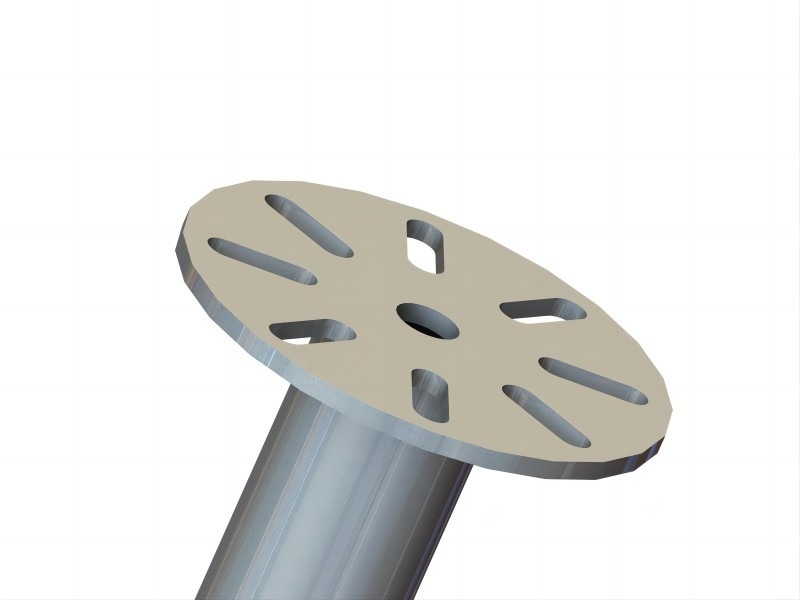

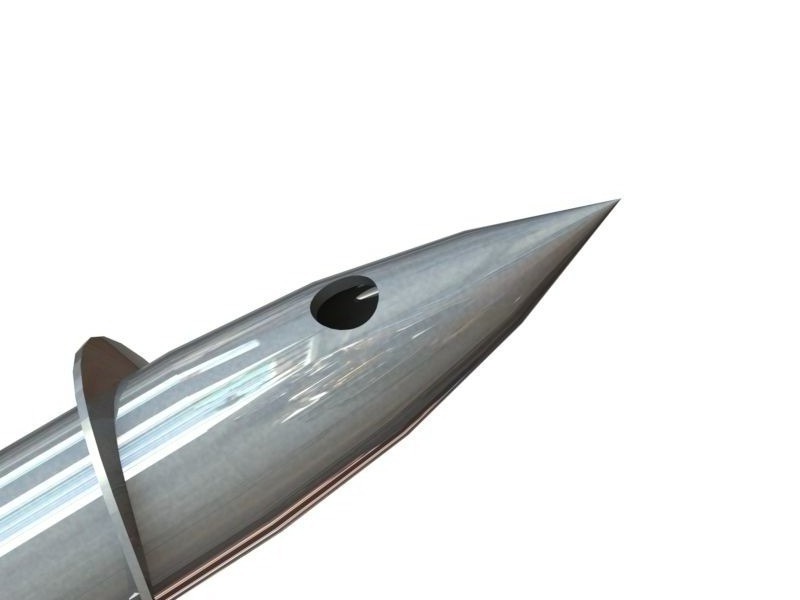

| The flange of Ground Screw | The thread end of Ground Screw |
This zinc layer protects the ground screw from the acids in the land and gives it a service life of more than 25 years. We can supply different lengths and types of ground screws depending on the specific situation and land conditions.
Advantages：
1. High corrosion resistance
The hot-dip galvanized layer protects it from the acidic substances in the land.
2. Flexibility
Manufactured in our own factory, we can freely customize the length, diameter, thickness, blade size and flange according to customer’s needs.
3. Convenient construction
Easily driven into the ground by machine, no need to pour cement for reinforcement.
FAQ：
1.Q:What are the advantages of your ground screw?
A:Our factory has nearly 30 years of production experience and strict quality control, which can guarantee the quality of every product from the factory.
2.Q:Can your ground screws be matched with other manufacturers' solar mounting bracket?
A:Our company has been providing ground screws for other manufacturers' solar mounting brackets for many years, and we can also modify the ground screws so that they are compatible with the design.
3.Q:What is the most common length of ground screw?
A:For normal ground, we usually choose 1600mm length ground screw. If the ground is soft or the solar mounting bracket is too heavy, we will consider using longer one.
Ground Screw is the foundation of solar bracket for solar power plants. It is used to drive into the ground and connect to the bracket above, supporting the whole system. It is a very important part of the solar system.
Designed for use in soft ground, large blade ground screw is available in 2-blade and 4-blade type. They have good resistance to pullout.
Adjustable ground screw is based on the common ground screw, separate the flange from the tube so that it can be adjusted in length. Suitable for areas with uneven land.
Double flanges ground screw is fixed on the common ground screw to increase the height of it. It is suitable for the area with big drop or pit.
Fluidized bed powder coating Fence is made of steel, and treated with Fluidized bed powder coating. It is commonly used for the security of ground-mounted solar power plants, farms or ranches, golf courses, etc. to prevent thieves and wild animals from entering. It is the most popular type of fence due to its beautiful appearance, durability and low cost. It is suitable even for sloping type of land.
Hot-dip galvanized fence is made of steel, and treated with hot-dip galvanization on the surface. It can be used for more than 20 years, most popular choice for coastal areas and other areas with more serious salt damage. It is suitable even for sloping type of land.
This type of fence is treated with both hot-dip galvanization and fluidized bed powder coating on the surface, which meets the need for corrosion protection while providing a smooth and beautiful surface.
Animal Solar Plant Security Fence is a simple and easy to install fence that comes in rolls, distinguishing it from mesh fencing that is installed piece by piece. It is commonly used in mountainous areas, ground-mounted solar power plants, farms or ranches to keep wildlife out.
