Adjustable ground screw is based on the common ground screw, separate the flange from the tube so that it can be adjusted in length. Suitable for areas with uneven land.
Item No :
SR DZ 03Payment :
30% T/T as deposit,70% before shipment.Product Origin :
Xiamen, ChinaColor :
SilverShipping Port :
XiamenLead Time :
7-15 days|
Brand： |
SR SOLAR |
|
Material： |
Q235B |
|
Treatment： |
Hot-dip galvanization |
|
Diameter: |
76mm/OEM |
|
Adjustable Length： |
0~850mm |
|
Thickness: |
3.0mm/3.25mm/3.5mm/OEM |
|
Warranty: |
10 years |
|
Certificate: |
ISO9001/SGS |
Product Description：

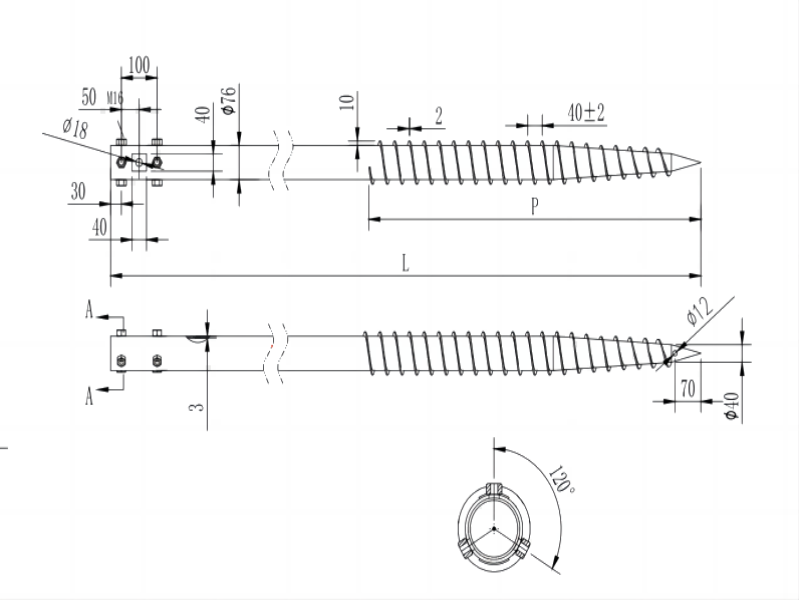

The adjustability is achieved by separating the flange from the tube and using three or six bolts to fix it to achieve adjustable length. It is generally used in uneven places such as inclined land and mountainous land. The adjustable range can be up to 850mm.
Advantages：
1.Convenient construction
Even if there are slight errors in the construction process, the height of the flanges can be easily adjusted to ensure that the ground screw remain at the same level. This flexibility helps to maintain stability and ensures a reliable foundation.
2.Suitability
They can be applied to various types of rugged terrain, providing stability and support even in challenging landscapes. This makes them a versatile option for different project locations.
3.Flexibility
As they are manufactured in our own factory, customization options include the length, diameter, thickness, blade size, and flange. This ensures that the ground screw can be tailored to specific project requirements, providing optimal performance.
FAQ：
1.Q:How long the flange can be and how long it can be adjusted at the maximum?

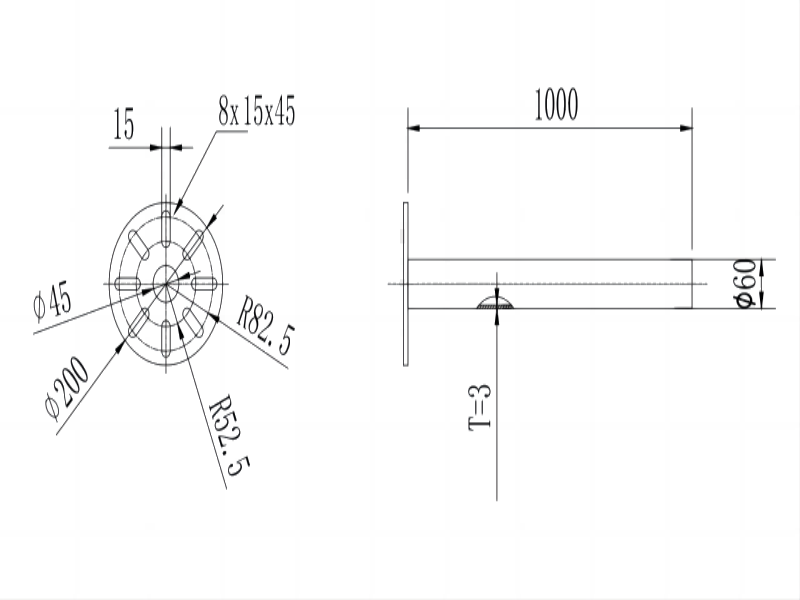

A:The maximum length of the flange is 1000mm,and it can be adjusted up to approximately 850mm.This allows for flexibility in adjusting the height and maintaining the desired level of the ground screws.
2.Q:Can adjustable ground screw be made with large blades?
A:Yes,adjustable ground screw can be made with large blades according to customer requirements. This ensures that the benefits of large blade ground screw, such as increased friction and stability, can be combined with the adjustability feature for optimal performance.
3.Q:How to fix the flange?
A:The flange is fixed using 3 or 6 large bolts, which lock and secure the tube of the flange. This ensures a strong and reliable connection, providing stability and support to the ground screw.
