Double flanges ground screw is fixed on the common ground screw to increase the height of it. It is suitable for the area with big drop or pit.
Item No :
SR DZ 04Payment :
30% T/T as deposit,70% before shipment.Product Origin :
Xiamen, ChinaColor :
SilverShipping Port :
XiamenLead Time :
7-15 days|
Brand： |
SR SOLAR |
|
Material： |
Q235B |
|
Treatment： |
Hot-dip Galvanization |
|
Diameter: |
76mm/OEM |
|
Length： |
~8000mm |
|
Thickness: |
3.0mm/3.25mm/3.5mm/OEM |
|
Warranty: |
10 years |
|
Certificate: |
ISO9001/SGS |
Product Description:

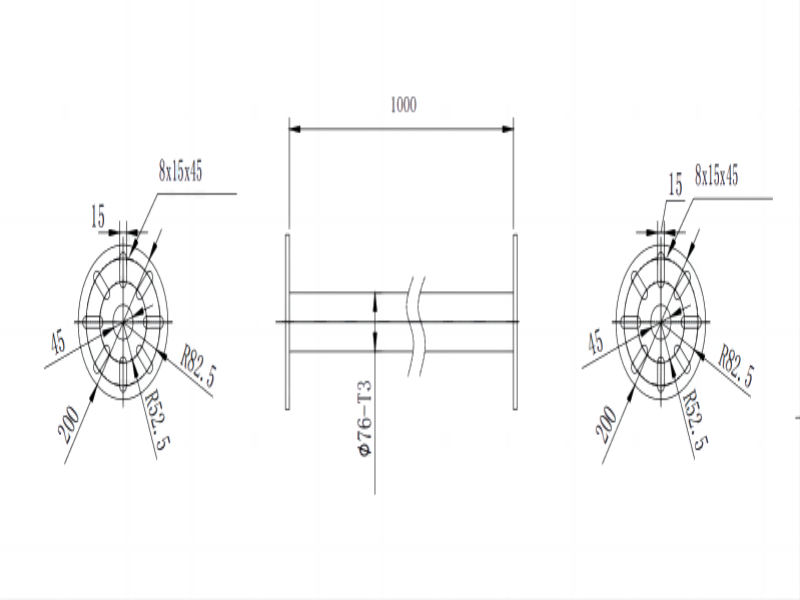

By welding two flanges on both ends of the tube, the double flanges ground screw offer unique advantages for installing solar energy systems on terrain with large drop-offs, such as cliffs. The double flanges can be fixed on the ground screw at one end and on the bracket at the other end, allowing for easy adjustment of the height to maintain a uniform horizontal line for the solar bracket.
Advantages：
1.Suitable for cliff areas
Suitable for installing solar energy systems on areas with large drop-offs such as cliffs.
2.Complementary to ground screw
This ensures that the solar energy system can be securely installed on uneven ground, providing stability and maximizing energy efficiency.
3.Easy installation
simple and similar to that of common ground screw, making it convenient for users.
FAQ：
1.Q:What are the advantages of double flanges ground screw?
A:They can be used as a means of remediation when the purchased ground screws are not long enough. This provides a solution for situations where additional height adjustment is required.
2.Q:What are the advantages of a double flange over an adjustable ground screw?
A:Compared to an adjustable ground screw, double flange ground screw offers a wider range of adjustability. This allows for more precise leveling and customization to suit the specific requirements of the installation site. Also, we can produce it according to customer's requirement. And the price is much cheaper.
3.Q:What is the most common length of double flanges?
A:The most commonly used length for double flanges ground screw are L200mm,L300mm and L500mm.These lengths provide versatility and can be selected based on the specific needs of the project.
Ground Screw is the foundation of solar bracket for solar power plants. It is used to drive into the ground and connect to the bracket above, supporting the whole system. It is a very important part of the solar system.
Designed for use in soft ground, large blade ground screw is available in 2-blade and 4-blade type. They have good resistance to pullout.
Adjustable ground screw is based on the common ground screw, separate the flange from the tube so that it can be adjusted in length. Suitable for areas with uneven land.
Double flanges ground screw is fixed on the common ground screw to increase the height of it. It is suitable for the area with big drop or pit.
Fluidized bed powder coating Fence is made of steel, and treated with Fluidized bed powder coating. It is commonly used for the security of ground-mounted solar power plants, farms or ranches, golf courses, etc. to prevent thieves and wild animals from entering. It is the most popular type of fence due to its beautiful appearance, durability and low cost. It is suitable even for sloping type of land.
Hot-dip galvanized fence is made of steel, and treated with hot-dip galvanization on the surface. It can be used for more than 20 years, most popular choice for coastal areas and other areas with more serious salt damage. It is suitable even for sloping type of land.
This type of fence is treated with both hot-dip galvanization and fluidized bed powder coating on the surface, which meets the need for corrosion protection while providing a smooth and beautiful surface.
Animal Solar Plant Security Fence is a simple and easy to install fence that comes in rolls, distinguishing it from mesh fencing that is installed piece by piece. It is commonly used in mountainous areas, ground-mounted solar power plants, farms or ranches to keep wildlife out.
