SR FTK 01 SR SOLAR Fixed Triangle Kit For Solar Roof Mounting Bracket

SR FTK 01 SR SOLAR Fixed Triangle Kit For Solar Roof Mounting Bracket

Designed for maximum stability and easy installation, our fixed triangular brackets provide a secure and versatile solution for mounting solar panels on pitched or sloped roofs, ensuring optimal energy production and durability for your solar system.

  • Item No :

    SR FTK 01
  • Payment :

    30% T/T as deposit,70% before shipment.
  • Product Origin :

    Xiamen, China
  • Shipping Port :

    Xiamen
  • Lead Time :

    7-15 days

Brand:

SR SOLAR

Place of Origin:

Xiamen,China

Material:

AL6005-T5

Installation Site:

Pitched Roof/Flat Roof

Warranty:

10 years

Service life:

25 years

Snow Load:

1.4Kn/㎡

Wind Load:

216km/h

Certificate:

ISO9001/SGS



Description:

  A fixed triangle kit for solar roof mounting brackets typically refers to a specific type of mounting system designed for installing solar panels on pitched/sloped roofs and flat roof. These kits usually consist of fixed triangular brackets that are secured to the roof structure and provide a stable base for mounting the solar panels.



Component Detail:

Item NO. Specification Material Picture

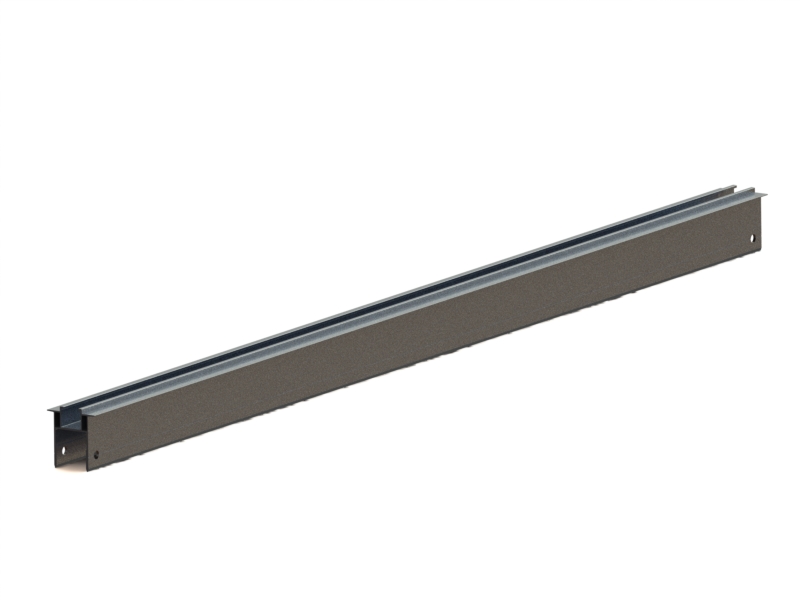

SR BM 10 57*64 AL6005-T5 sloped beam

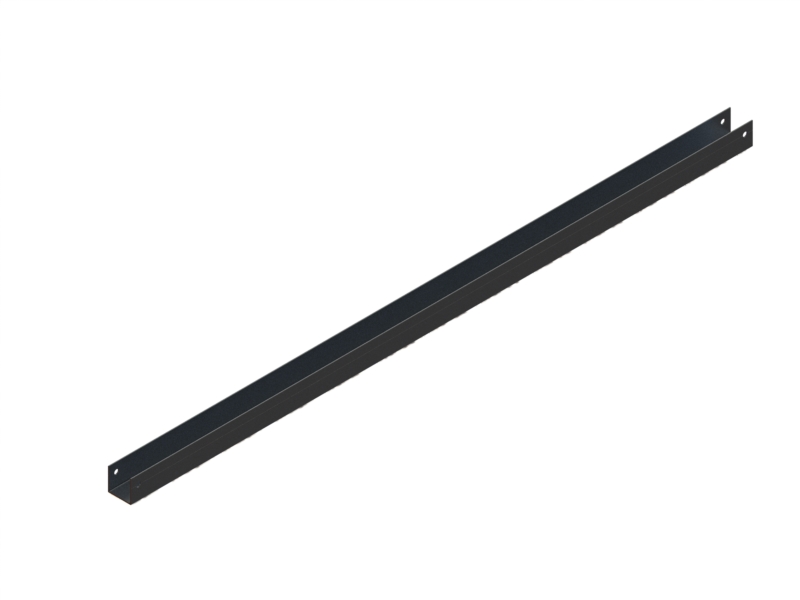

SR UB 02 45*45.6 AL6005-T5 U type base beam

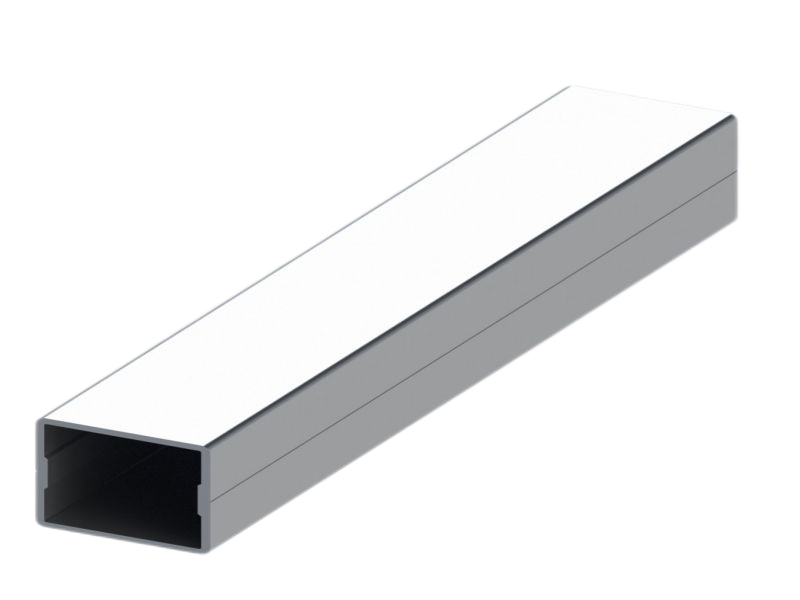

SR SL 03 35*35 AL6005-T5 Aluminum Square Tubes For Solar Mounting System

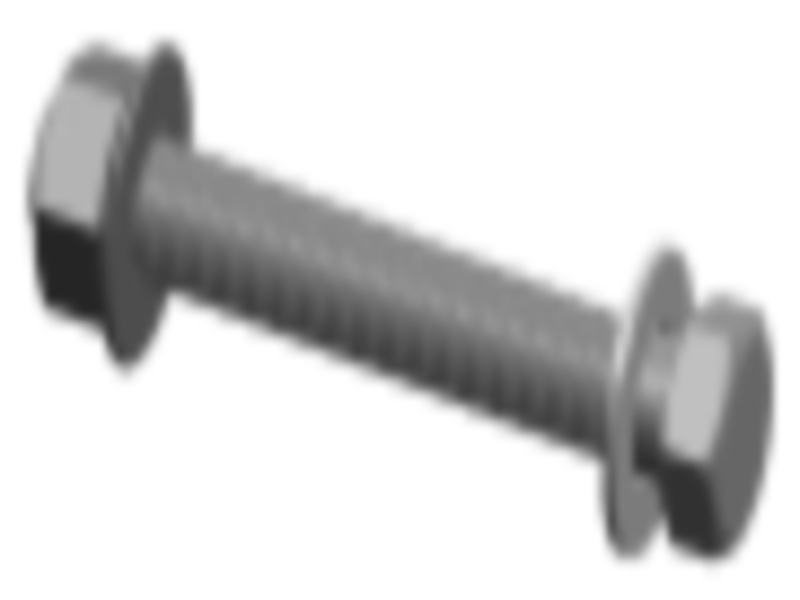

SR NL 01-50A M8*50 SUS304 Bolts and Nuts
SR UB 02-55A M8*55 SUS304 Bolts and Nuts



Pictures:

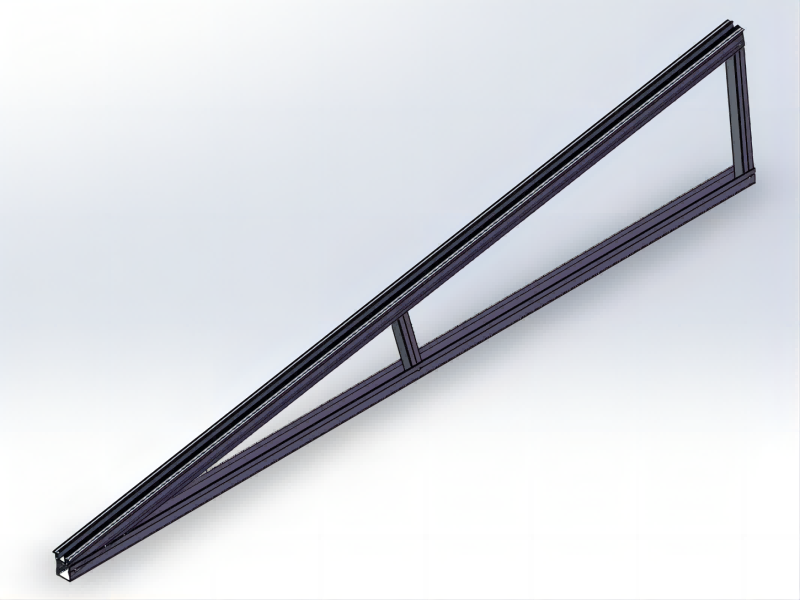

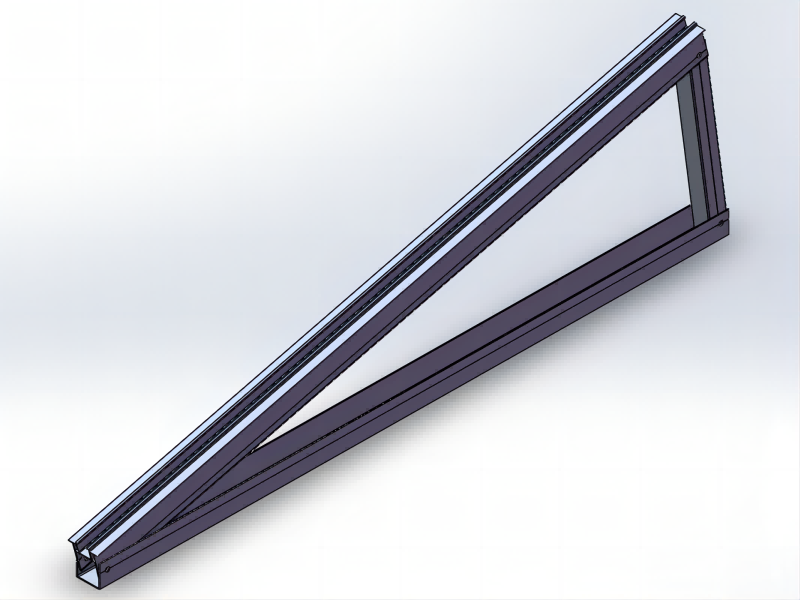

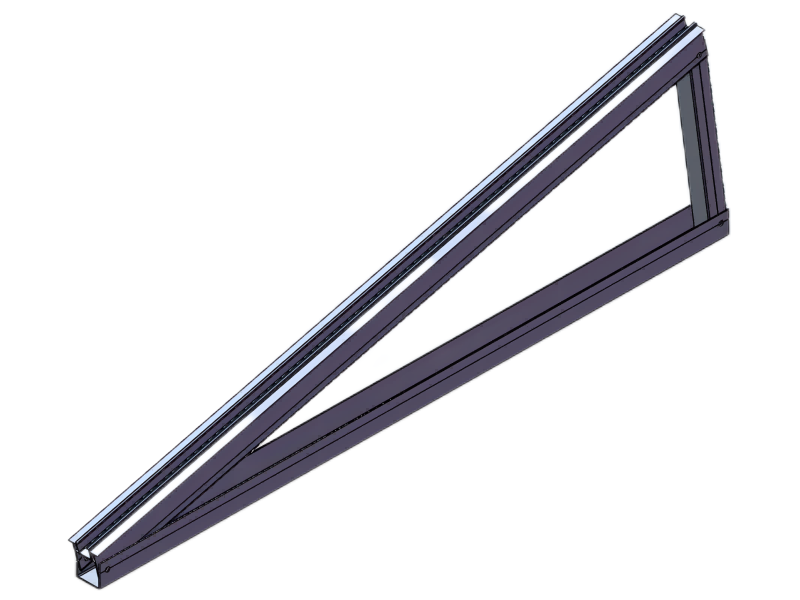

Fixed triangle bracket for solar roof mounting system



Fixed triangle bracket for solar roof mounting system



Advantages:

1.Durable Construction:

Our kit is built to withstand various weather conditions and provide long-lasting support. Made from high-quality materials, it ensures the stability and integrity of your solar panel installation.



2.Easy Installation:

We understand the importance of a hassle-free installation process. With our kit, you can enjoy a seamless setup with intuitive instructions and pre-assembled components. Save time and effort while achieving a secure and efficient mounting system.



3.Versatile Compatibility:

Our kit is designed to accommodate different roof types and panel sizes. Whether you have a tiled roof, metal roof, or flat roof, our mounting bracket offers flexibility and adaptability, ensuring a perfect fit for your solar panel array.



4.Reliable Support:

The Fixed Triangle Kit provides exceptional support for your solar panels. It utilizes a triangular structure, distributing the weight evenly and minimizing stress on the roof surface. This design enhances stability and reduces the risk of damage.



FAQ:

1.Q: What type of roof surfaces is the Fixed Triangle Kit compatible with?

A: The Fixed Triangle Kit is designed to be versatile and compatible with various roof types, including tiled roofs, metal roofs, and flat roofs. It can be securely installed on most standard roof surfaces, providing flexibility for different installation settings.



2.Q: How does the Fixed Triangle Kit ensure the stability of the solar panel installation?

A: The Fixed Triangle Kit utilizes a triangular structure, which distributes the weight of the solar panels evenly across the mounting brackets. This design enhances stability and minimizes the stress on the roof surface, ensuring a secure and long-lasting installation.



3.Q: Does SR SOLAR's fixed triangular mounting kit come with wind deflectors?

A: Yes, SR SOLAR's fixed triangular mounting kit can be equipped with wind deflectors. Wind deflectors are an additional design feature aimed at providing additional protection against wind and rain, as well as enhancing system stability. They are positioned on the sides or around the triangular mounting system to effectively reduce the impact of wind on the solar panels and prevent side winds from affecting the system. Wind deflectors also help reduce wind pressure and vibration, improving the overall stability and reliability of the solar system. If you are interested in the design and functionality of wind deflectors, feel free to contact us for more information.
