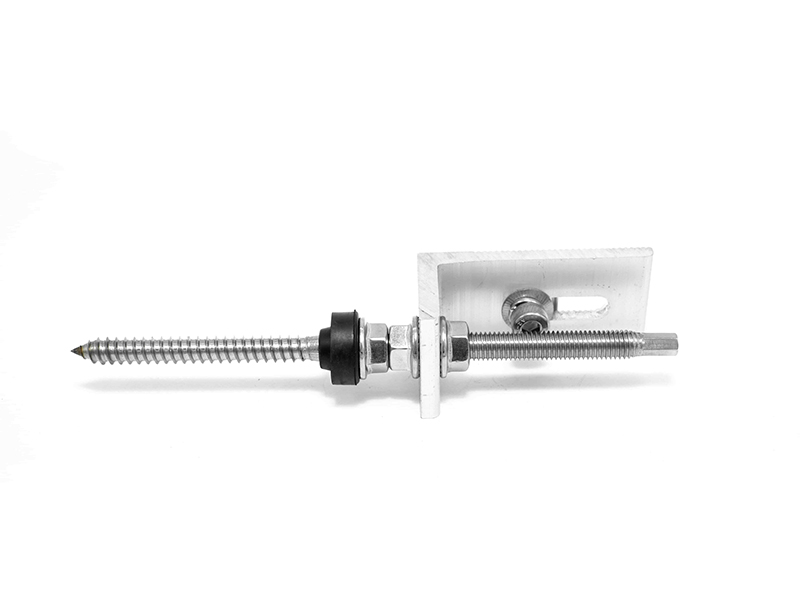

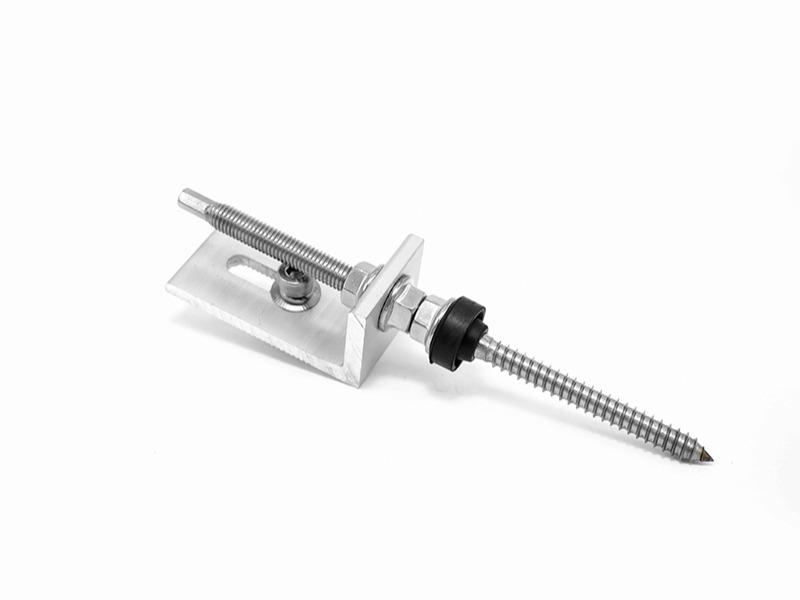

Designed for easy and secure solar panel installations, this kit combines hanger bolts for sturdy roof attachment with adjustable L foot for optimal panel positioning on pitched roofs. Harness the power of solar energy with confidence and simplicity!
Item No :
SR LS 01Payment :
30% T/T as deposit,70% before shipment.Product Origin :
Xiamen, ChinaShipping Port :
XiamenLead Time :
7-15 days|
Brand: |
SR SOLAR |
|
Place of Origin: |
Xiamen,China |
|
Material: |
AL6005-T5(L Foot)/Stainless Steel(Hanger Bolt) |
|
Installation Site: |
Pitched Roof |
|
Roof Type: |
Trapezoidal Metal Roof |
|
Application: |
Metal Purlin/Wood |
|
Warranty: |
10 years |
|
Service life: |
25 years |
|
Snow Load: |
1.4Kn/㎡ |
|
Wind Load: |
216km/h |
|
Certificate: |
ISO9001/SGS |
Description:
Hanger bolts with L foot are commonly used in solar mounting systems to secure solar panels to various types of roofs, such as asphalt shingle roofs.
The hanger bolt is a special type of screw that has threads on one end and a lag screw-like shaft on the other end. It is typically made of stainless steel to ensure durability and resistance to corrosion. The threaded end of the hanger bolt is inserted and screwed into the roof rafter or other structural component, providing a stable and secure attachment point.
The L foot, as the name suggests, have an L-shaped design. They are usually made of aluminum or stainless steel and provide a mounting point for the solar panel rails. The L foot are attached to the hanger bolts using bolts or other fasteners, creating a strong connection between the roof and the solar panel mounting system.

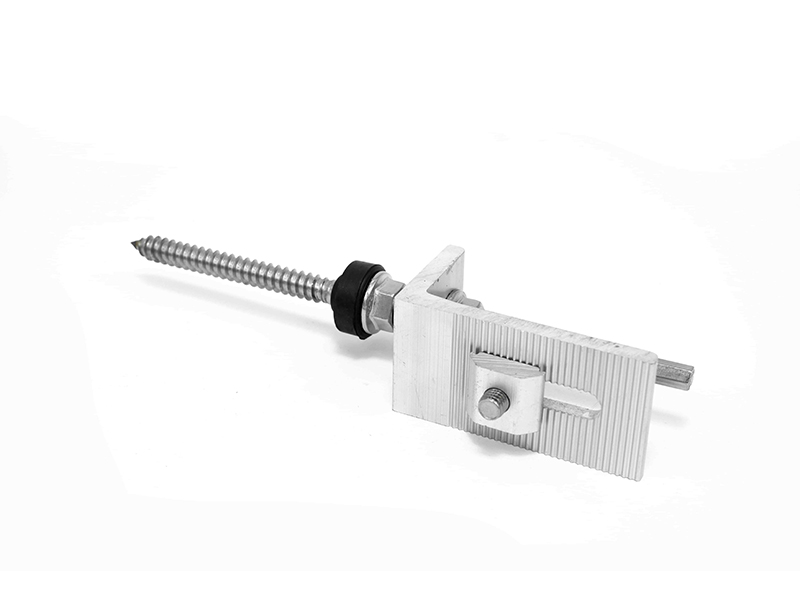

The hanger bolt with L foot kit allows for easy and reliable installation of solar panels on pitched roofs. The L foot can be adjusted to accommodate different slopes and angles, ensuring proper alignment and maximizing sunlight exposure for optimal solar energy production.
Picture:
Detail:

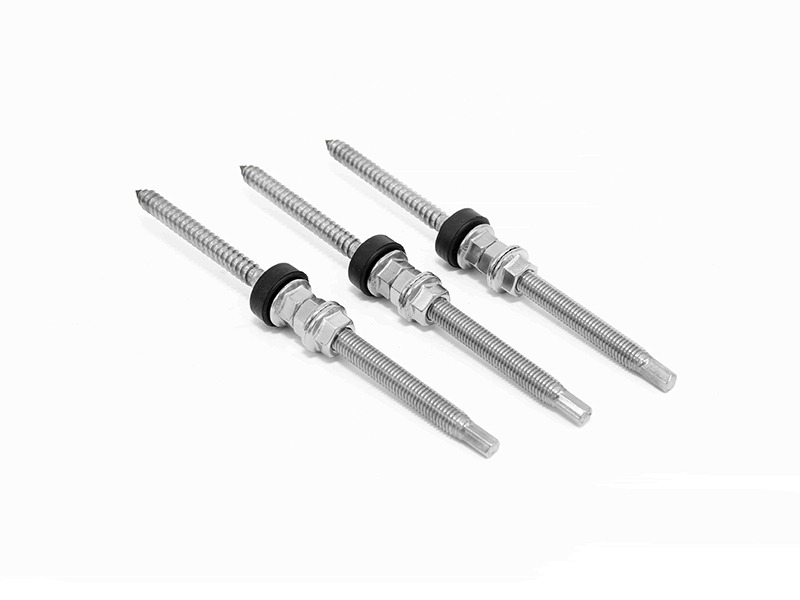

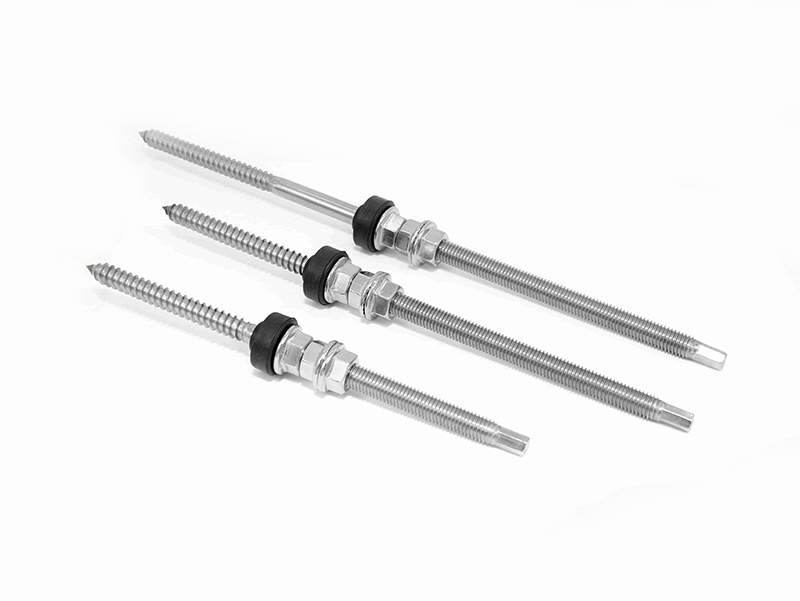

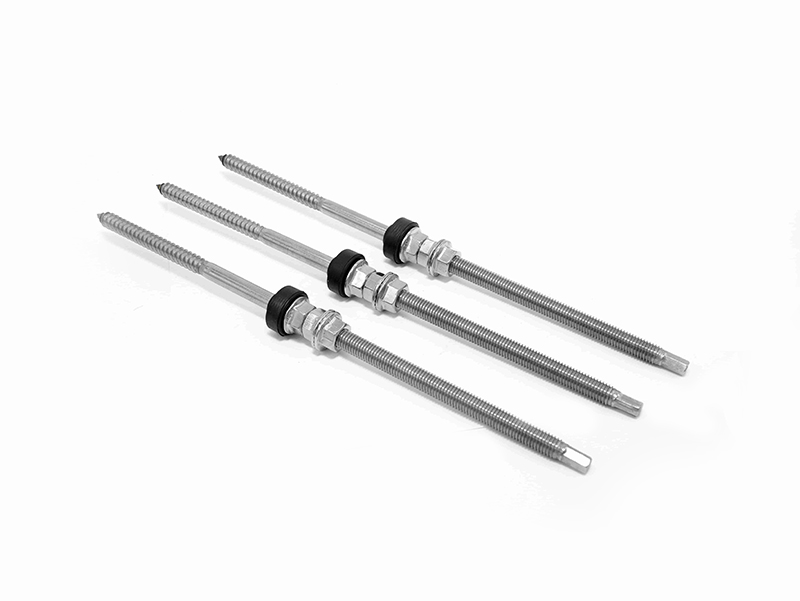

Hanger Bolt Part:
| Item NO. | Specification | Picture |
| SR ML 01 | M10*200 |  |
| SR ML 02 |
M10*250 |
 |
| SR ML 03 | M10*300 |  |

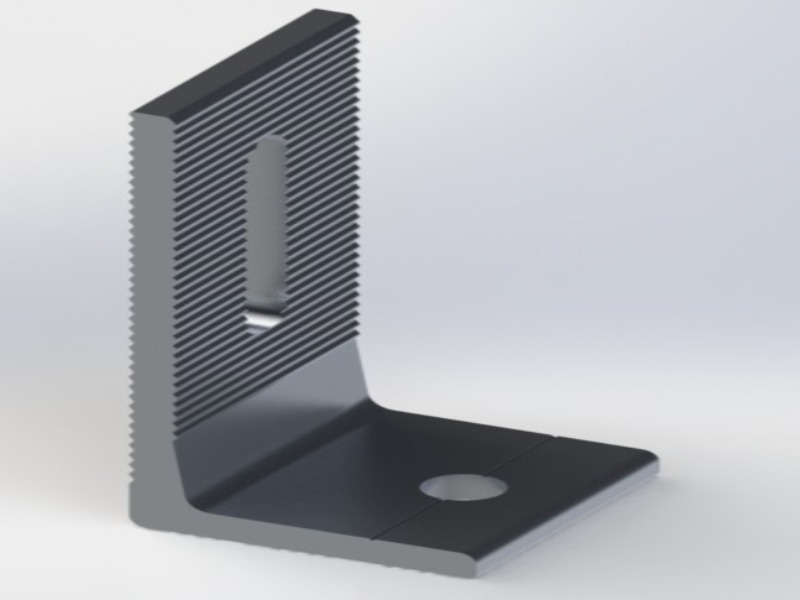

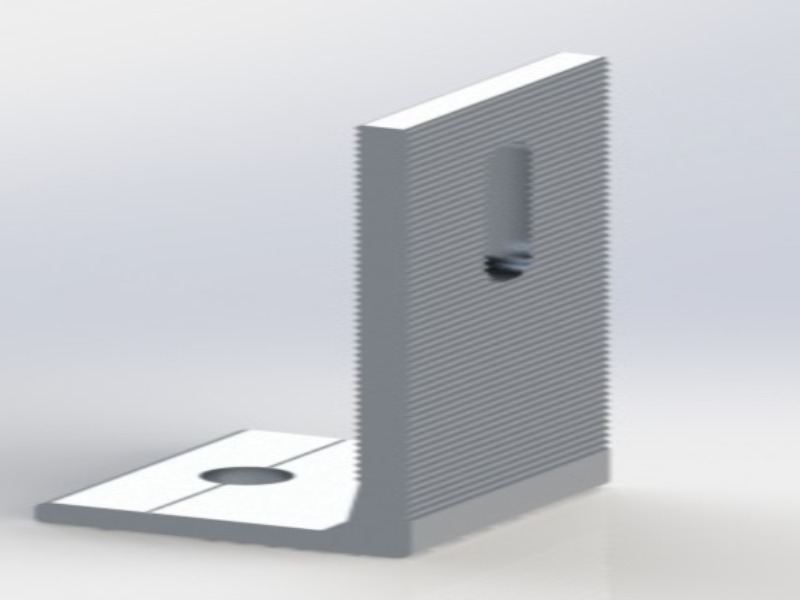

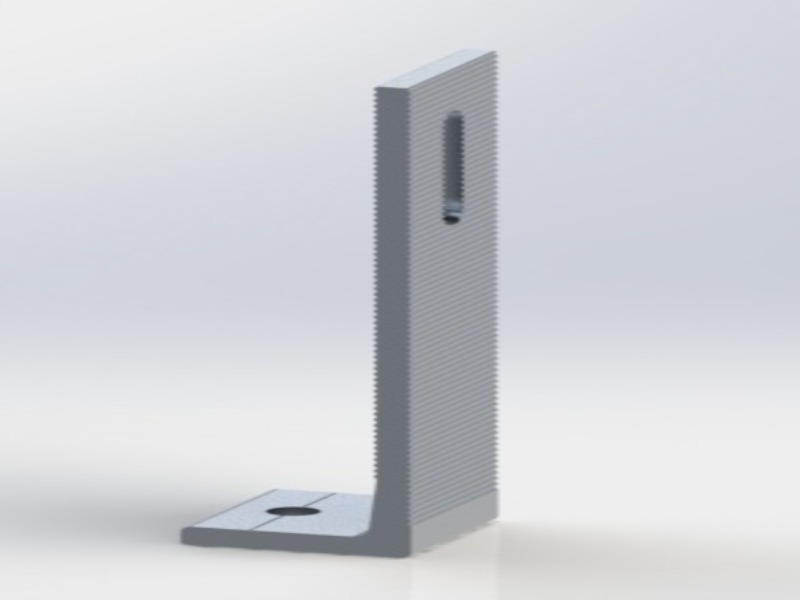

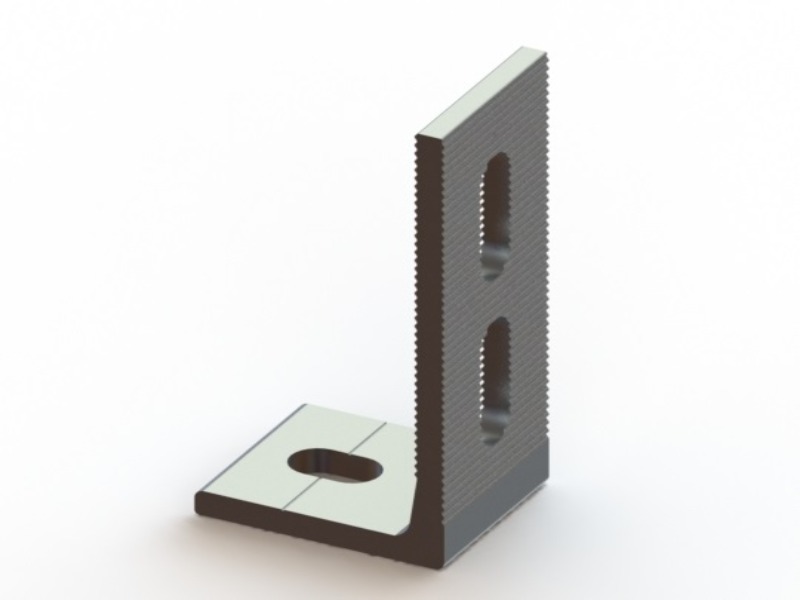

L Foot Part:
| Item NO. | Specification | Length(mm) | Picture |
| SR LF 01 | 50.3*105 | 105 |  |
| SR LF 02 | 40*85 | 85 |  |
| SR LF 03 | 40*125 |
125 |
 |
| SR LF 04 | 40*165 | 165 |  |
Advantages:
Our kit offers numerous advantages for your solar panel installation needs. With its robust design and high-quality materials, it provides exceptional strength and durability, ensuring a secure and long-lasting mounting system. The adjustable L foot allow for flexible positioning, optimizing the angle and direction of your solar panels to maximize energy production. Experience easy installation, reliable performance, and peace of mind with the SR Solar hanger bolt with L foot kit.
1.Metal Purlin Hanger Bolts
Advantages：
①Self-tapping Thread: The self-tapping thread design of hanger bolts for metal purlin applications allows them to create their own threads in the metal surface during installation. This eliminates the need for pre-drilling pilot holes, saving time and effort.
②Strong Connection: The self-tapping thread provides a secure and reliable connection to the metal purlin. It can handle higher load capacities, making it suitable for applications where a stronger connection is required.
2.Wood Screw Thread:
Advantages：
①The wood screw thread design of hanger bolts for wood applications allows them to thread directly into wood material. It provides a firm grip, ensuring stability and preventing loosening over time.
②Versatility: Wood hanger bolts can be used in various wood structures, such as timber frames, wooden decks, or other wood-based applications.
